Hygienic Fan Coil Units

Fan Coils Units in hygiene version - conformity according of VDI 6022

Hygienic centrifugal fan coil unit compliant to VDI 6022: a simple and immediate solution for safety of people in confined environments. A comfortable and healthy indoor climate for people are important aspects in the field of air conditioning and ventilation technology. In offices, hotels, clinics or in the private sector, a high and trouble-free performance, maximum silence as well as a modern design of the fan coil units is guaranteed by COOLtec. In addition, the fan coils AIR-HY and cassettes LIGHT-HY have been tested and approved according to VDI 6022 sheet 1 (edition 01/2018) by the Hygiene Institute of the Ruhr area. The units thus meet all the high requirements of VDI 6022 Sheet 1 (01/2018) for perfect indoor air quality and unhesitating use in buildings with high hygienic standards.

The VDI 6022 guide lines are recognized at European level as a reference point for the design of innovative public places in which an excellent level of hygiene and comfort must be ensured for the total psychophysical well-being of the user.

The main arguments of VDI 6022 are air hygiene in rooms, human well-being and the avoidance of bacterial and mold formation within the plants and devices. The use of anticorrosive materials and up to date technology polymers, which have been tested according to DIN EN ISO 846 and prevent the formation of microorganisms, enables the realization of two high-quality device series. Easy access for maintenance and cleaning of the units is another important advantage here.

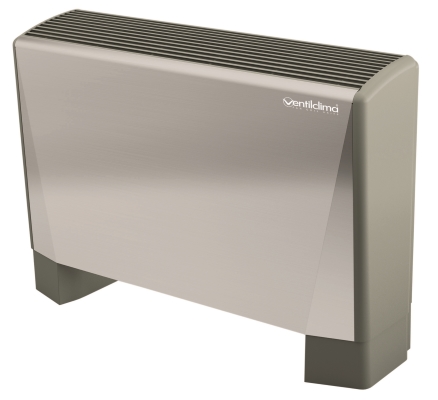

Hygiene fan coil unit AIR-HY

Hygienically compliant and tested according to VDI 6022 sheet 1 (01/2018) by the Hygiene Institute of the Ruhr Area.

  • 10 sizes
  • 2- or 4-pipe system
  • Horizontal or vertical installation
  • With or without carbinet
  • For ceiling, suspended ceiling and wall mounting
  • EC or AC fan
  • EUROVENT certified



Features:

  • No water residues in the unit, water drains freely due to the unit design
  • All polymer materials are certified and approved
    • Thus avoiding bacterial growth and mold
  • Stainless steel condensate drain pan
  • Carbinet made in painted and galvanized steel (standard) or stainless steel (optional)
  • Air outlet grille made of aluminum (thermostat available for wall mounting only)

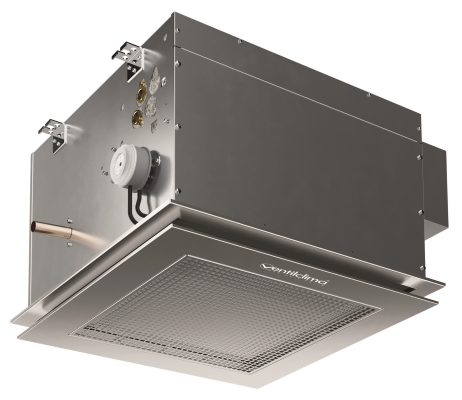

Hygiene cassette fan coil unit LIGHT-HY

Hygiene compliant and tested according to VDI 6022 sheet 1 (01/2018) by the Hygiene Institute of the Ruhr Area

  • 5 sizes, 2-pipe system
  • 6 sizes, 4-pipe system
  • Frame sizes 600x600mm
  • Panel in stainless steel
  • EC fan
  • EUROVENT certified



Features:

  • All polymeric materials are certified and approved
    • Thus avoiding bacterial growth and mold
  • Stainless steel condensate drain pan
  • All parts in contact with air made of stainless steel
  • Easy maintenance due to side access (Easy-way-system)
  • Valve kit for installation outside the unit














Thanks to the attractive external design and its elegant shapes, our fan coil units are the perfect element for integration in your rooms. The entire portfolio of our fan coil units can be equipped with innovative Brushless ECM motors. Hereby the power consumption can be reduced up to 75%.
